Whats Included: Complete Set Of Pistons, Locks, 5115 Series Straight Wall Pins & Oil Rail Spacers (As Required)
Application: Recommended for Applications Using Nitrous (Up To 250HP Shot) / Not Recommended For Turbo Applications

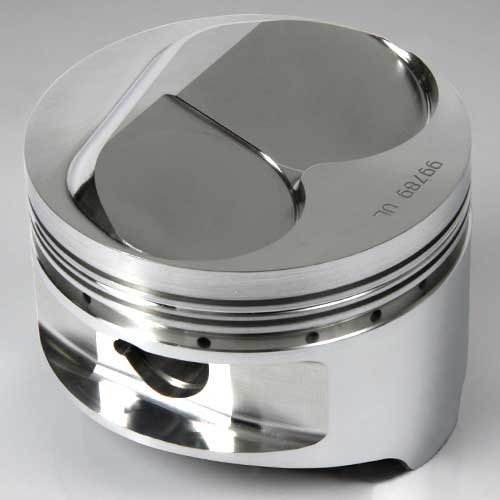

[Please Note]: Image is a representation of this item. Actual item may vary.
Piston Top Type: Dome Top
Bore: 4.070
Stroke: 3.310
Rod Length: 6.123
Compression Height: 1.804
Compression Ratio (58): 13.70
Compression Ratio (60): 13.26
Compression Ratio (64): 12.46
Dome Volume: 12.60
Dome Height: .450
Gram Weight: 550
Rings: 1/16 1/16 3/16
Ring Set: RS-9771-75
Rings Included: No
Oil Rail Spacer: NO
Pins: 5115 Straight Wall
Pin Diameter: .984
Pin Length: 2.930
Pin Wall: .150
Pin Weight: 143 Grams
Pin Buttons: NO
Block Height: 9.599
Top Land: .280
Second Land: .157
Oil Land: .078
Deck Thickness: .180
Intake Cutter: 2.150
Exhaust Cutter: 1.700
Intake Depth: .300
Exhaust Depth: .250
Note: Will work with factory open & closed chamber heads ONLY
