Whats Included: Complete Set Of Pistons, Locks & 5115 Series Straight Wall Pins
Application: Recommended for Applications Using Nitrous (Up To 250HP Shot) / Not Recommended For Turbo Applications

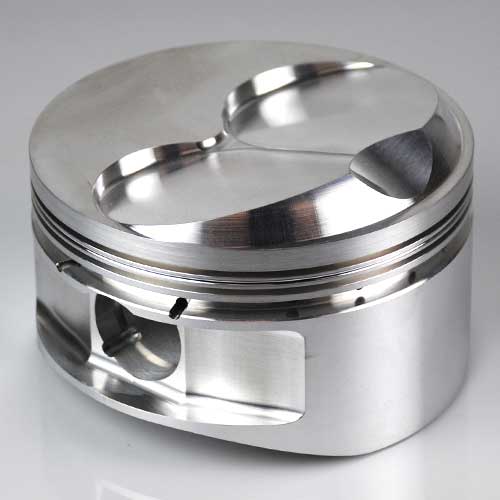

[Please Note]: Image is a representation of this item. Actual item may vary.
Piston Top Type: Dome Top
Bore: 4.375
Stroke: 3.750
Rod Length: 6.768
Compression Height: 1.320
Compression Ratio (64): 15.30
Compression Ratio (75): 13.20
Compression Ratio (86): 11.70
Dome Volume: 14.00
Dome Height: .450
Gram Weight: 555
Rings: 1/16 1/16 3/16
Ring Set: TOT-CR9190
Rings Included: No
Oil Rail Spacer: Not Included
Pins: 5115 Straight Wall
Pin Diameter: 1.094
Pin Length: 2.750
Pin Wall: .156
Pin Weight: 158 Grams
Pin Buttons: Not Included
Block Height: 9.980
Top Land: .235
Second Land: .125
Third Land: .078
Deck Thickness: .200
Intake Cutter: 2.300
Exhaust Cutter: 2.000
Intake Depth: .220
Exhaust Depth: .200
Note: You can reduce the 1.094 rod pin holes to .900 diameter (Chevrolet pin diamteter) with Ross Rod Bushing Part# B1094
