Recommended for Nitrous & Boosted Applications (Pin Upgrade Recommended When Running Over 250HP Nitrous or 10LBS. Boost)

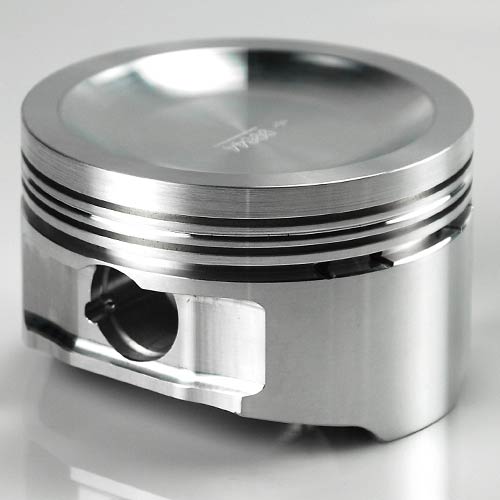

[Please Note]: Image is a representation of this item. Actual item may vary.
Piston Top Type: Dish Top
Bore: 3.572
Stroke: 3.542
Rod Length: 5.933
Compression Height: 1.220
Compression Ratio (42): 11.20
Compression Ratio (51): 9.80
Compression Ratio (53): 9.50
Dome Volume: -6.75
Gram Weight: 367
Rings: 1.5 1.5 3.0
Ring Set: R5163
Rings Included: NO
Pin Type: 5115 Straight Wall
Pin Diameter: .866
Pin Length: 2.500
Pin Wall: .115
Pin Weight: 90 Grams
Block Height: 8.937
Optional Upgrade: Heavy Duty 52100 Series Pins
