Whats Included: Complete Set Of Pistons, Locks & Pins
Application: Recommended for Applications Using Nitrous (Up To 250HP Shot) / Not Recommended For Forced Induction

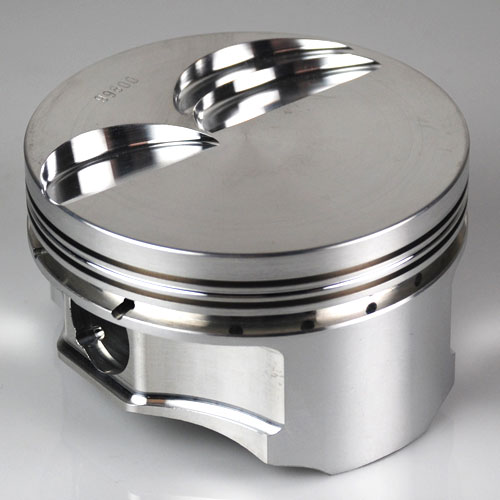

[Please Note]: Image is a representation of this item. Actual item may vary.
Piston Top Type: Dish Top
Bore: 4.030
Stroke: 3.850
Rod Length: 6.200
Compression Height: 1.350
Compression Ratio (58): 10.5
Compression Ratio (61): 10.2
Compression Ratio (72): 9.1
Dome Volume: -18.00
Gram Weight: 471
Rings: 1/16 1/16 3/16
Ring Set: TOT-CR3690
Rings Included: No
Pin Type: 5115 Straight Wall
Pin Diameter: .927
Pin Wall: .150
Pin Length: 2.500
Pin Weight: 118
Block Height: 9.500
Oil Rail Spacer: N/A
NOTE: Piston Rings Sold Separately
