Whats Included: Complete Set Of Pistons, Locks, & Pins
Application: Not Recommended for use in Nitrous or Turbo Applications
[Please Note]: Image is a representation of this item. Actual item may vary.

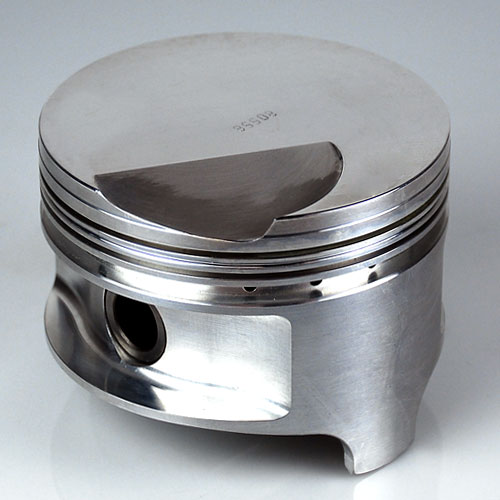

Piston Top Type: Flat Top
Bore: 4.030
Stroke: 3.500
Rod Length: 6.000
Compression Height: 1.446
Compression Ratio (64): 10.36
Compression Ratio (68): 9.90
Compression Ratio (76): 9.11
Dome Volume: -3.00
Dome Height: 0.00
Gram Weight: 497
Rings: 1/16 1/16 3/16
Ring Set: TOT-CR3690
Rings Included: No
Pin Type: 5115 Straight Wall
Pin Diameter: .927
Pin Wall: .150
Block Height: 9.213
NOTE: Piston Rings Sold Separately
